How to Send & Receive SMS Messages Using Linux

Located in /usr/local/bin is a sample perl script sendsms to allow testing of SMS message sending

This script uses the perl Device::Gsm library and takes 2 command line parameters to define the target phone number and SMS message content

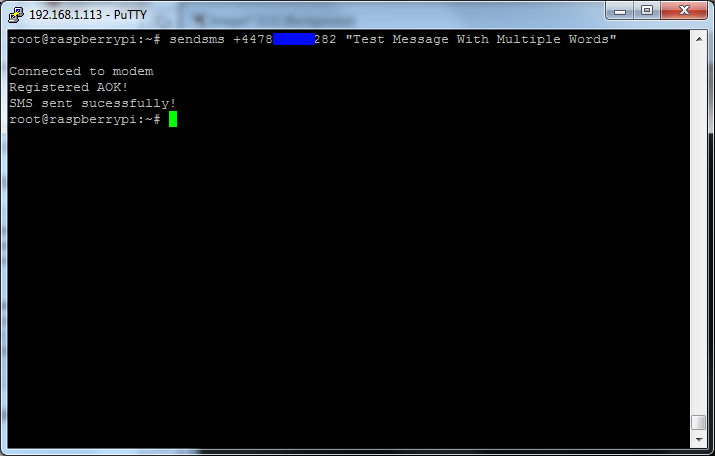

Here's a screen shot of it in action :

MyPi Industrial Raspberry Pi SMS Demo Step 1

Also included are

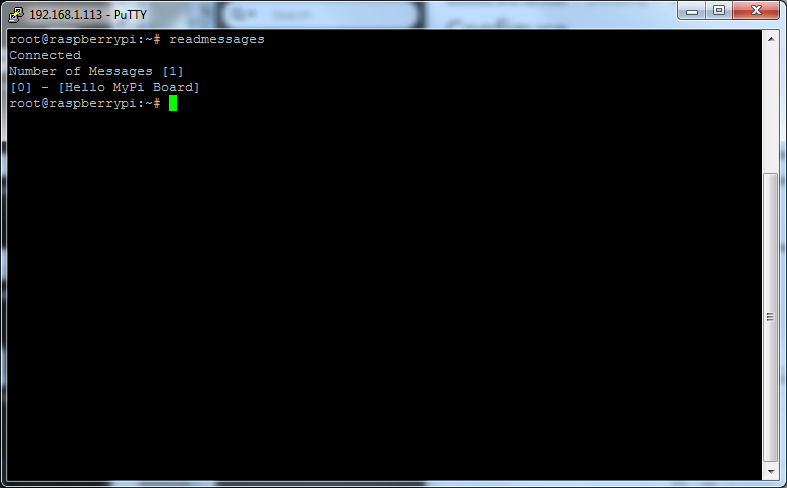

/usr/local/bin/readmessages

This prints a list of messages received with an index number

MyPi Industrial Raspberry Pi SMS Demo Step 2

The perl library the script is calling uses some basic AT commands to read back the messages stored on the modem, you can see the actual commands here :

MyPi Industrial Raspberry Pi SMS Demo Step 3

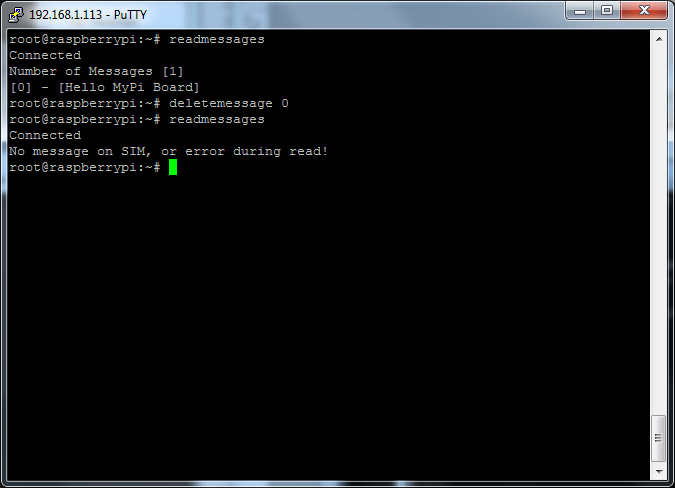

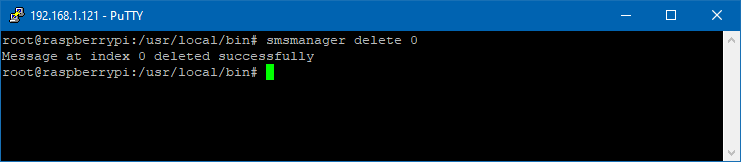

/usr/local/bin/deletemessage

This deletes the supplied message index number

MyPi Industrial Raspberry Pi SMS Demo Step 4



A useful resource on SMS messages can be found here

SMS Messages AT Command reference
