UART0 (ttyAMA0) Serial Port Configuration

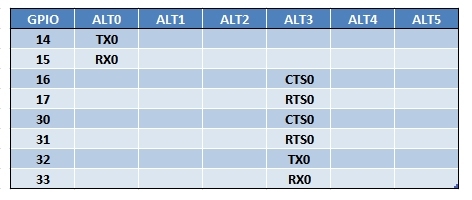

ttyAMA0 is the main Raspberry Pi serial port for communication with peripherals, it is routed to both the HAT connector and the MyPi ASIO connector on the pins below.

MyPi Industrial Raspberry Pi Compute Module Serial Configuration ttyAMA0 Step 1



The ASIO Connector brings both pins 14-17 and 30-33 out, the default UART0 configuration overlays work with pins 30-33

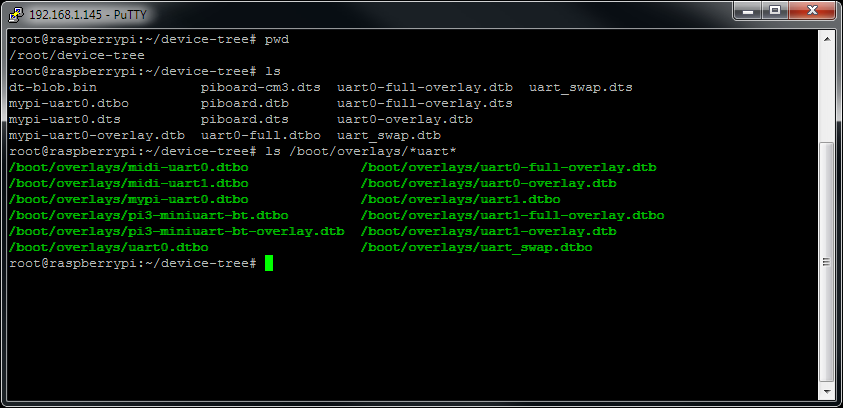

To enable the UART you need to compile/copy the device tree overlay files to the /boot/overlays folder



** Please note **

Due to clash with a recently introduced offical Raspberry Pi device tree overlay we need to rename our uart0.dtbo overlay to mypi-uart0.dtbo




MyPi Industrial Raspberry Pi Compute Module Serial Configuration ttyAMA0 Step 2

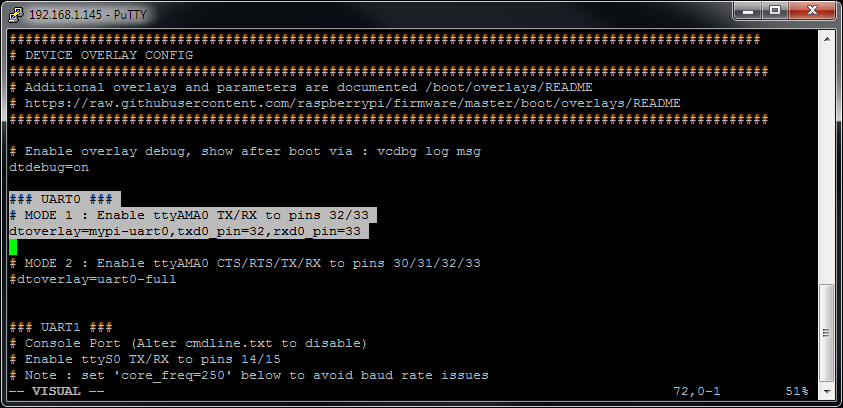

Next we need edit/add the below lines in /boot/config.txt to enable either just the basic RX/TX lines or the full set including flow control (RX/TX/RTS/CTS)



MyPi Industrial Raspberry Pi Compute Module Serial Configuration ttyAMA0 Step 3

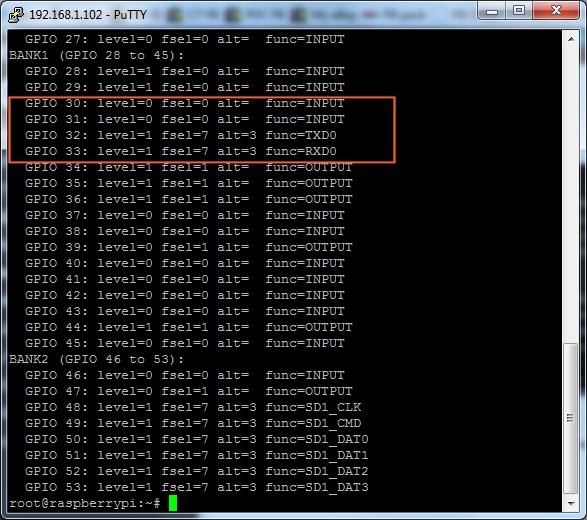

You can cross check these lines have been correctly configured by using  raspi-gpio get



MyPi Industrial Raspberry Pi Compute Module Serial Configuration ttyAMA0 Step 4





UART Device Tree Overlay Files
