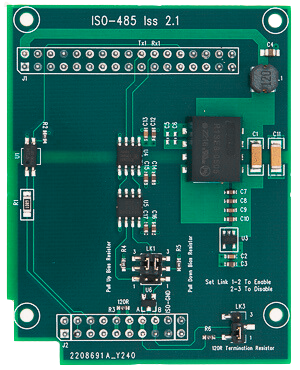

ISO-485

Single channel isolated half-duplex (2-wire) RS485 adapter using MAX13487 transceiver incorporating fully automatic, transparent hardware flow control for easy operation

1 x Opto-Isolated digital input (5-40V)
1 x 2-Wire RS485/RS422 transceiver including bias pull and termination resistors

Isolated RS485 Modbus Industrial Raspberry Pi IO Card

ISO-485-4Wire

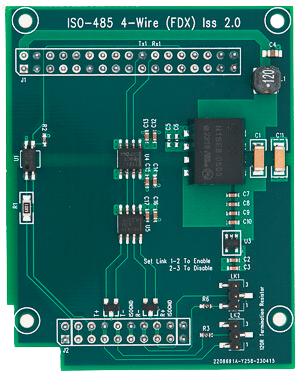

Single channel isolated full-duplex (4-wire) RS485 adapter

1 x 4-wire RS485/RS422 transceiver with integrated termination resistors

Isolated 4-Wire RS485 Modbus Industrial Raspberry Pi IO Card

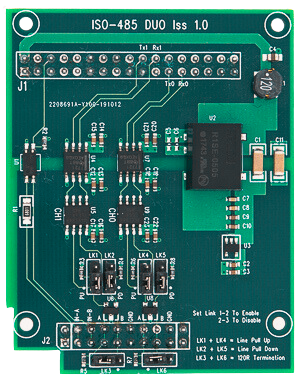

ISO-485-DUO

Dual isolated half-duplex RS485 channels using MAX13487 transceiver IC incorporating fully automatic, transparent hardware flow control for easy operation

2 x 2-wire RS485/RS422 transceiver with integrated bias pull and termination resistors
1 x Opto-Isolated digital input (5-40V)

Isolated Dual RS485 Modbus Industrial Raspberry Pi IO Card

Multi-485 IO Card

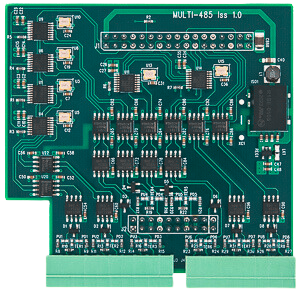

Provides 8 x Isolated half-duplex RS485/422 channels using MAX13487 transceiver IC incorporating fully automatic, transparent hardware flow control for easy operation

- 2x SC16IS740 UARTs in SPI Mode
- 4x SC16IS740 UARTs in I2C Mode
- 2x Raspberry Pi UARTs

Baud Rates from 1200-115200 supported, fits with ENC4 Enclosure style

Multi RS485 8x RS485 ports Modbus Raspberry Pi IO Card

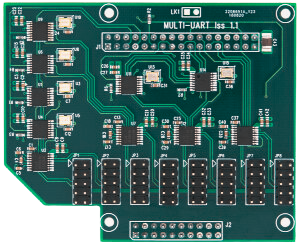

Multi-RS232 IO Card

Provides 8 x RS232 serial ports presented as 8x 10way IDC connectors suitable with off-the shelf D9 cable assemblies.

- 2x SC16IS740 UARTs in SPI Mode
- 4x SC16IS740 UARTs in I2C Mode
- 2x Raspberry Pi UARTs

Baud Rates from 1200-115200 supported

Multi UART 8x RS232 ports Raspberry Pi IO Card

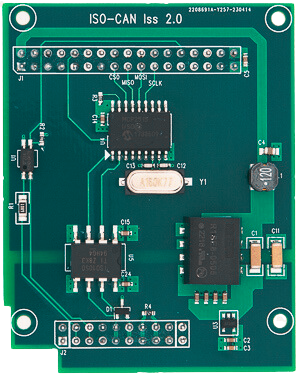

ISO-CAN

Single channel isolated CAN-BUS adapter for use with industrial or automotive controllers

1 x Isolated MCP2515 CAN interface controller with line protection
1 x Opto-isolated digital input (5-40V)

Isolated CAN-Bus Industrial Raspberry Pi IO Card

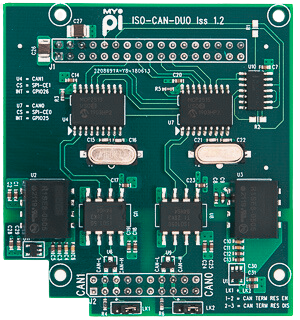

ISO-CAN-DUO

Dual isolated CAN-BUS/CAN-BUS-FD channels for connectivity for use with industrial or automotive controllers

2 x Isolated MCP2515 CAN interface controllers for CAN 2.0 Version
2 x Isolated MCP2517FD CAN-FD interface controllers for CAN-FD Version

Isolated Dual CAN-Bus CAN-FD Industrial Raspberry Pi IO Card

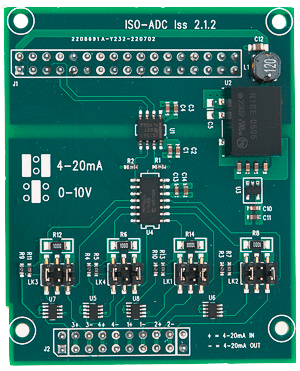

ISO-ADC

Isolated 18Bit Analogue input card for dealing with industrial analogue sensors, with Linux OS kernel module support allowing easy integration into scripts without having to write complex programs.

Card allows reading of 4-20mA current loop sensors or 0-10V voltage inputs using precision 0.1% scaling resistors.

4-20mA inputs are fully protected from over current or short-circuits preventing damage through operator wiring error.

4 x Isolated 18Bit Analogue Inputs using MCP3424 ADC

Isolated ADC 4-20mA Sensor Industrial Raspberry Pi IO Card

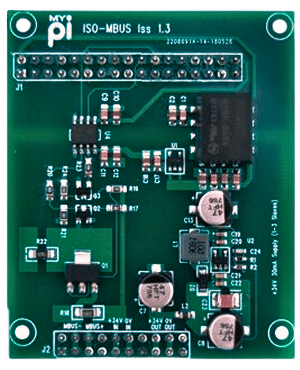

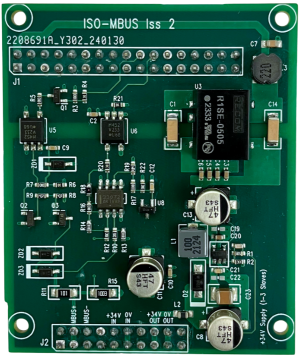

ISO-MBUS

Isolated M-BUS adapter allowing serial communication with utility/heat metering using the M-BUS interface, this card is based on the open source MBUS project

1 x MBUS serial driver circuit (1-3 Slaves) with optional integrated 34V PSU

Isolated M-Bus Industrial Raspberry Pi IO Card

ISO-1WIRE

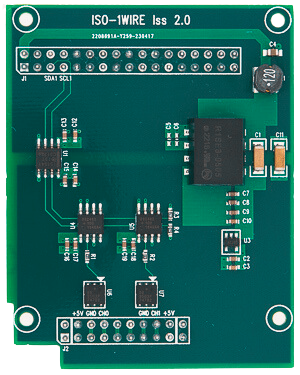

Dual independent DS2482 I2C based 1-Wire controllers, fully isolated from the main CPU card and line protected.

2 x Isolated 1-Wire controllers with line protection and power supply

Isolated 1-Wire Industrial Raspberry Pi IO Card

ISO-KNX

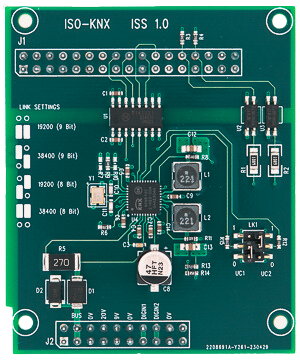

Isolated KNX Serial adapter for connecting to HVAC/Building automation devices, utilises a supported, dedicated KNX NCN5130 transceiver with open source support.

- 1x NCN5130 KNX bus transceiver
- 2x Isolated Digital Inputs

KNX Bus Interface Industrial Raspberry Pi IO Card

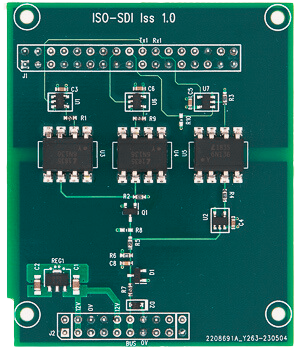

ISO-SDI-12

Isolated SDI-12 Serial interface for connecting to SDI-12 environmental sernsors/devices, contains all logic inversion and sensor wake GPIO line.

- 1x SDI-12 Interface

SDI-12 interface Industrial Raspberry Pi IO Card

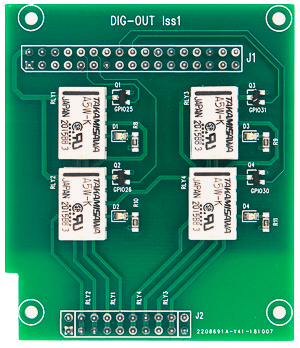

ISO-DIG-OUT

4 Channel N.O. Relay outputs, can be used to drive a high power relay or simumlate push switch inputs

4 x N.O. Relays @ 30VDC/1A (resistive)

Isolated Digital Out Relay Driver Industrial Raspberry Pi IO Card

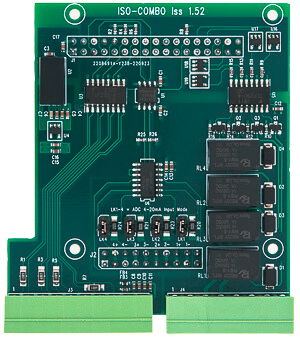

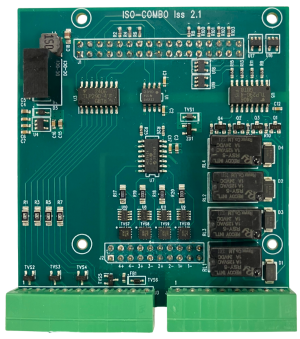

ISO-COMBO

Combined IO Card providing multiple Analogue and digital inputs

Features :

4 x Opto Isolated Double Ended Digital Inputs (>= 5V)
4 x Opto Isolated 24VDC/1A Relay Outputs
4 x Isolated 18Bit 4-20mA Analogue Inputs using MCP3424 ADC

Fits ENC4 Enclosure

Isolated Digital Input Industrial Raspberry Pi IO Card

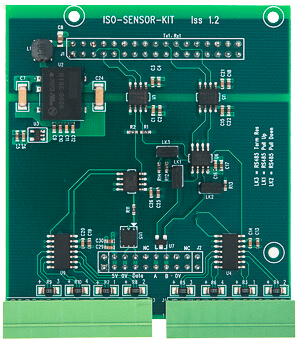

ISO-SENSOR-KIT

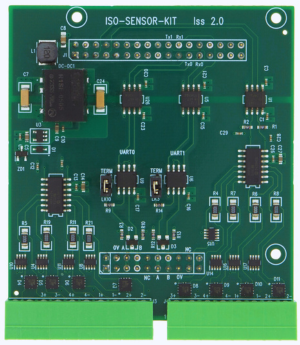

Multi Protocol IO card

Features :

1 x Isolated 1-Wire Interface
1 x Isolated RS485 (Half Duplex)
8 x Isolated 18Bit 4-20mA Analogue Inputs using MCP3424 ADC

Fits ENC4 Enclosure

Isolated Digital Input Industrial Raspberry Pi IO Card

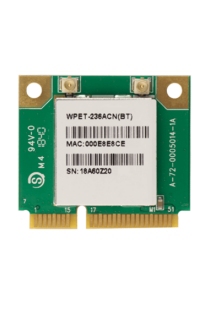

mPCIe-WiFi+BT-236ACN

SparkLAN WPET-236ACN(BT) mPCIe USB dual function 2.4/5Ghz WiFi & Bluetooth 4.x (Co-Exist) card, see datasheet for more details

Easy to install software driver via installation scripts available for Raspbian OS

mPCIe SparkLAN WPET-236ACN(BT) 5Ghz Wifi Bluetooth Industrial Raspberry Pi

mPCIe-LoRa-Concentrator-RAK

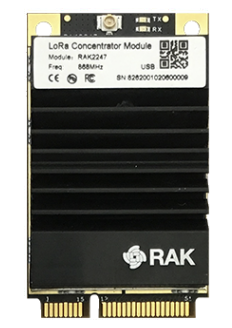

Easily build your Multi-Channel LoRa Gateway using the mPCIe USB/SPI RAK2247 (868/915) LoRa Concentrator Card

Features integrated SX1301 base band processor emulating 49 LoRa demodulators/10 parallel download paths with Full LoRaWAN® 1.0.2 stack support

mPCIe RAK2247 LoRa Concentrator Card Industrial Raspberry Pi

mPCIe-ZIGBEE

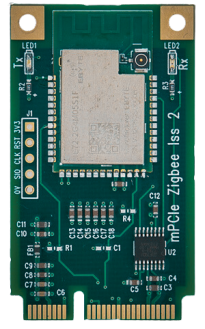

Based around the TI CC2652 Zigbee Module, this module provides 802.15.4 compliant ZIGBEE mesh connectivity.

This module comes with precompiled firmware from Z-Stack-firmware

This module is fully FCC and CE certified.

1x RFSTAR/EBYTE CC2652 Module

Zigbee Telegesis RX357 mpcie Industrial Raspberry Pi IO Card

mPCIe-TCM310

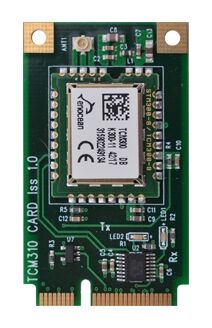

Quickly build your EnOcean 868MHz gateway with the TCM310 module, the TCM310 allows bidirectional, transparent serial comms.

Supported by NodeRED, this drop in module allows quick integration with remote sensors utilising EnOcean technology

This module is fully CE certified.

EnOcean TCM310 mpcie Industrial Raspberry Pi IO Card

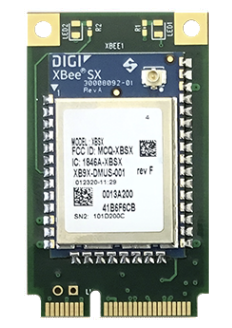

mPCIe-XBEE

Remote comms has never been so easy with long range Digi XBEE modules giving transparent long range RF communications or local ZIGBEE networks.

The SMT XBEE Module design is the latest generation of XBEE modules from Digi providing a wireless, transparent, serial bridges between two points via thier DigiMesh networking stack .

Region specific operating frequency and network varient to be specified at time of order, standard type is 868/900Mhz DigiMesh.

XBEE DigiMesh ZIGBEE 868/915 Industrial Raspberry Pi IO Card

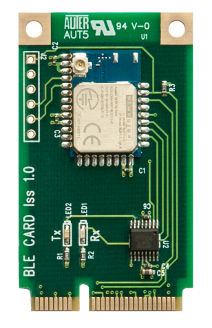

mPCIe-BLE

Providing easy out of the box Bluetooth 4.0 BLE support, the BLE112 Bluetooth module comes with full Raspberry Pi support with app notes and sample Python scripts.

This module is fully FCC and CE certified.

1x BLE112E BLE Bluetooth Module

Bluetooth BLE112 mpcie industrial Raspberry Pi IO Card

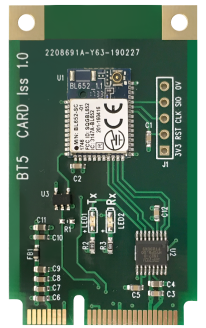

mPCIe-BT5

Add Bluetooth 5.0 support to your Gateway unit, the Laird BL652/BL654 Bluetooth module comes with support for smartBasic applications.

Uses Nordic Semiconductor nRF52832/nRF52840 Chipset, see our documentation section for sample application and notes on logging Bluetooth advertisement data.

This module is fully FCC and CE certified.

1x nRF52832/nRF52840 based Bluetooth 5.0 Module

Bluetooth 5.0 BL652 mpcie industrial Raspberry Pi IO Card

mPCIe-LoRa-Client

Accelerate your LoRa project with the Microchip RN2483/RN2903 868/915Mhz Single Channel LoRa module, see our documentation section for application notes on how to get going quickly.

This module is fully FCC and CE certified and has both HF and LF external aerial connections, please specify which module version is required at time of order.

 Microchip RN2483/RN2903 LoRa mpcie module Industrial Raspberry Pi IO Card

mPCIe-LoRa-Concentrator-NFuse

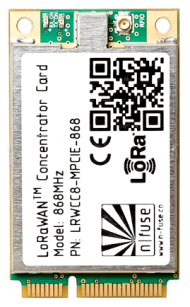

Easily build your Multi-Channel LoRa Gateway using the nFuse USB mPCIe 868/915 LoRa Concentrator Card

Features integrated SX1308 base band processors

mPCIe nfuse 833/915 LoRa Concentrator Card Industrial Raspberry Pi

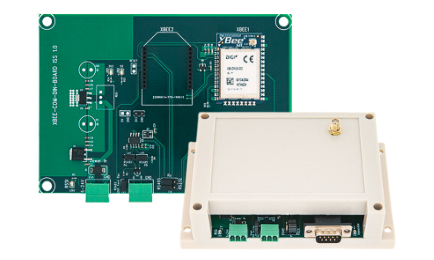

XBEE-RF-SERIAL

This module complements the mPCIe-XBEE card in providing a remote end point for wireless RS485/RS232 Comms.

Serial Protocol agnostic with transparent wireless Rx/Tx serial communication, making building wireless modbus networks easy.

- THT and SMT XBEE RF Module footprint compatible
- Serial COM output selectable as RS232 or RS485
- 7-28V DC IN
- Selectable RS232/RS485 output
- 2-Wire RS485 with transparent hardware flow control

RS2UART Card
Can you provide a custom IO card design?

Yes, we can design, build and supply custom IO modules to exact requirements, contact us now to discuss your project.

Have you documentation for these IO Cards?

Yes, we have fully documented all the IO cards under Linux OS please see our documentation pages for more information.

Can I use a standard Raspberry Pi HAT Card with MyPi?

Yes, the MyPi IoT Integrator Board has a HAT compatible connector so you can use either type of IO card

Can you stack more than one IO card?

No, You can only use one single function card at a time, please contact us if you require a multi-function card.
