MyPi Integrator Board I/O Card PCB Template

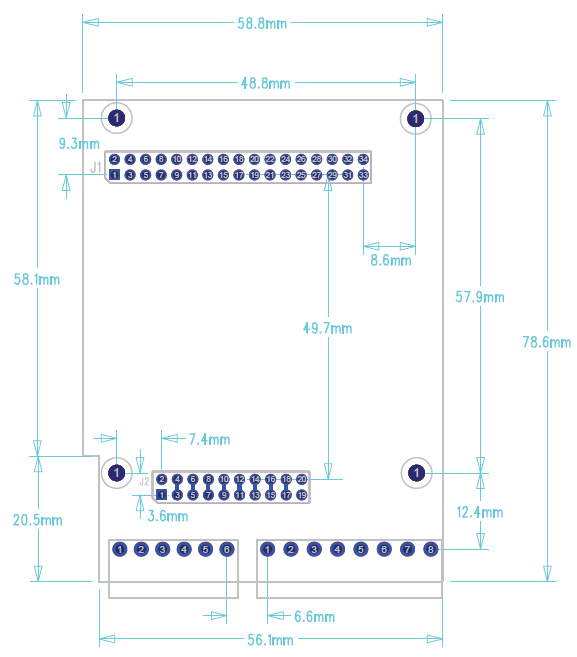

The IO PCB follows the basic layout below

MyPi Industrial Raspberry Pi  IO PCB Tempate

A template zip file is available containing reference information in the following format :

OrCAD (Schematic)

PADS (PCB Layout)

EAGLE (Schematic/PCB Layout)

DXF (PCB Layout)

PDF (PCB Layout)


Starter PCB ZIP


Starter PCB Dimensions PDF
